Description

• Single-mode WD Max45mm
• Multi-mode WD Max 10mm
• Light exit angle ＜0.1°
• The preferred choice for fast fiber optic connection

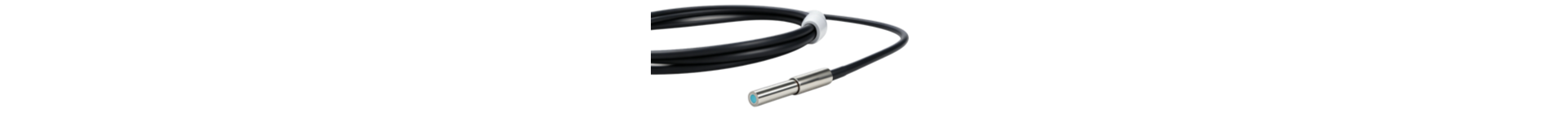

Coaxial fiber collimator  also known as the non-deviation angle fiber optic collimator, its core characteristic lies in the nearly perfect coincidence between the output optical axis of the collimator and the mechanical axis. This design eliminates the need for precise adjustment of the output angle of the light beam during the installation process, greatly simplifying the installation procedure.Within the working distance range, the coaxial fiber collimator can always maintain excellent collimation performance, ensuring the stable transmission of optical signals. Especially in the paired installation, this collimator can achieve rapid and precise alignment, significantly reducing the insertion loss of the optical path and effectively improving the transmission efficiency of optical signals.

Features：

Both single-mode and multi-mode optical fibers can be fabricated

It supports flexible configuration without the need for in-depth calibration

The core optical components of the optical fiber rotary joint

The radiation-resistant coaxial collimator can be customized.

Application:Fiber bundle connectors ,Opto-electric rotary Jumper,Fiber rotation platforms,Intelligent robots

Oopto-electric current transformers with plug-and-play optical axis alignment.

Parameter
