Description

• Spot size: 0.9-3.7mm optional
• Excellent Gaussian spot characteristics within 1m
• Insensitive to wavelength selection

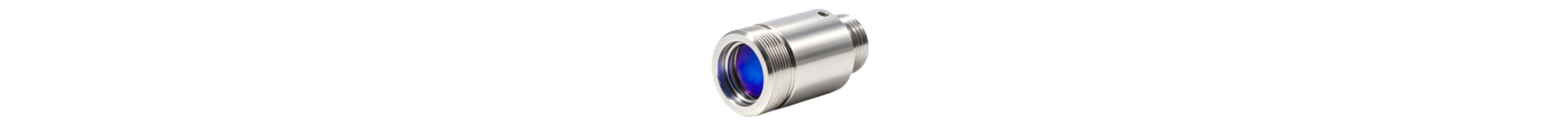

Achromatic Lenses Collimators  It consists of a group of long focal length collimating optical systems with chromatic aberration and distortion compensation design, making the focal length of the collimator insensitive to wavelength bandwidth. The divergent light beam emitted from the optical fiber, providing a good collimating effect and beam shape within a certain distance range. The optical surfaces of the lens group are coated with anti-reflection film to minimize surface reflection. The relative position of the lens and fiber is precisely adjusted to ensure that the deviation angle of the emitted light is within 0.3°, and standardized manufacturing processes ensure stable consistency of the product.

Features：

Three Connector Options：FC/PC、FC/APC、SMA905

Compatible with Narrow and Wide Key Connectors

Compact structure, Convenient for installation

The focal length has little influence on the wavelength, thus facilitating the handling of adjacent wavelengths.

It is recommended to use it together with Ysenser's standard patch cords to achieve better interchangeability and repeatability.

Parameter
